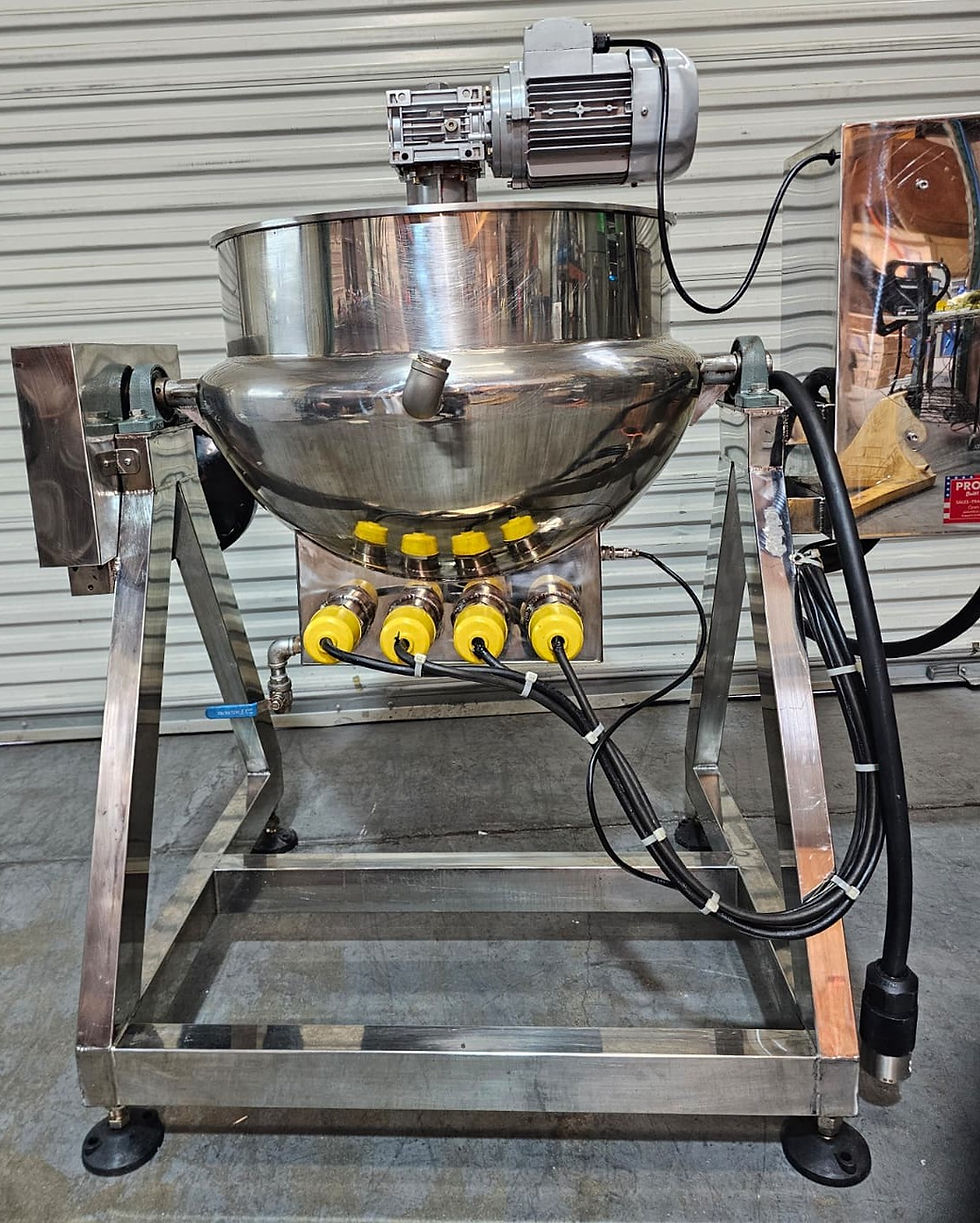

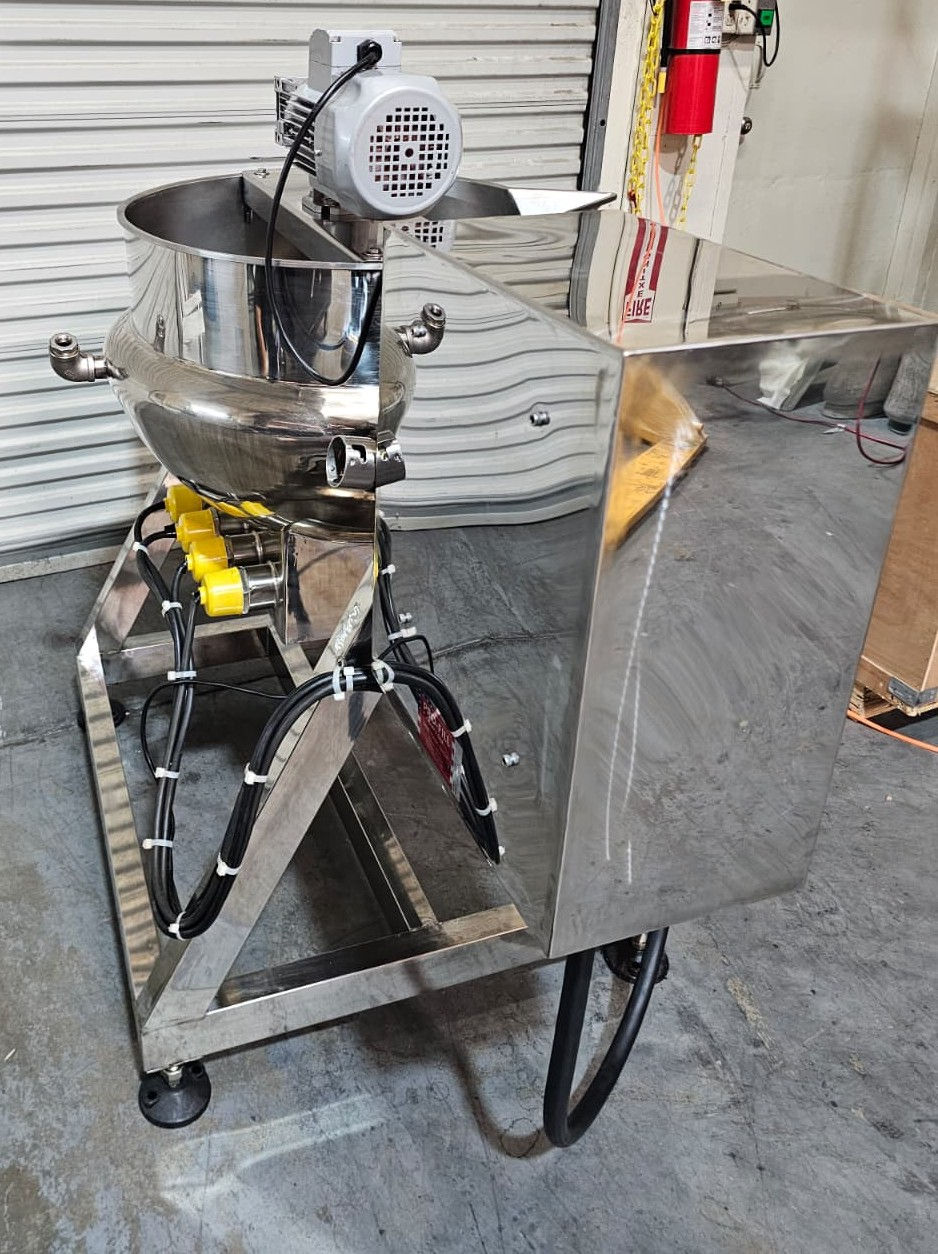

Stainless Steel Food Grade Cooking Jacket Kettle with Digital Control Panel & Automated Scraper Mixer

What is this for?
This commercial-grade industrial tilting mixing kettle is the ultimate solution for streamlining cooking, concentration, and homogenous blending processes across the food, confectionery, and cosmetic industries. Constructed entirely from premium food-grade stainless steel, this equipment ensures maximum hygiene, easy sanitation, and excellent corrosion resistance under demanding production environments.
The system is powered by a heavy-duty top-mounted 3/4 HP three-phase motor paired with a high-torque worm gearbox designed to handle high-viscosity products effortlessly. The internal mixing agitation assembly is fitted with food-grade, heat-resistant white Teflon scrapers that continuously sweep the interior walls of the kettle. This eliminates hot spots, ensuring uniform temperature distribution and preventing product buildup or burning. Additionally, it features an integrated, stainless-steel digital control enclosure for precise temperature monitoring and a manual handwheel tilting mechanism that allows operators to safely tilt the vessel for quick, clean, and controlled pouring of the finished batch.

Specs:
Equipment Type: Industrial Tilting Kettle with Top-Driven Scraper Mixer
Material of Construction: Food-Grade Stainless Steel (Frame, kettle, control enclosure, and mixing arms)

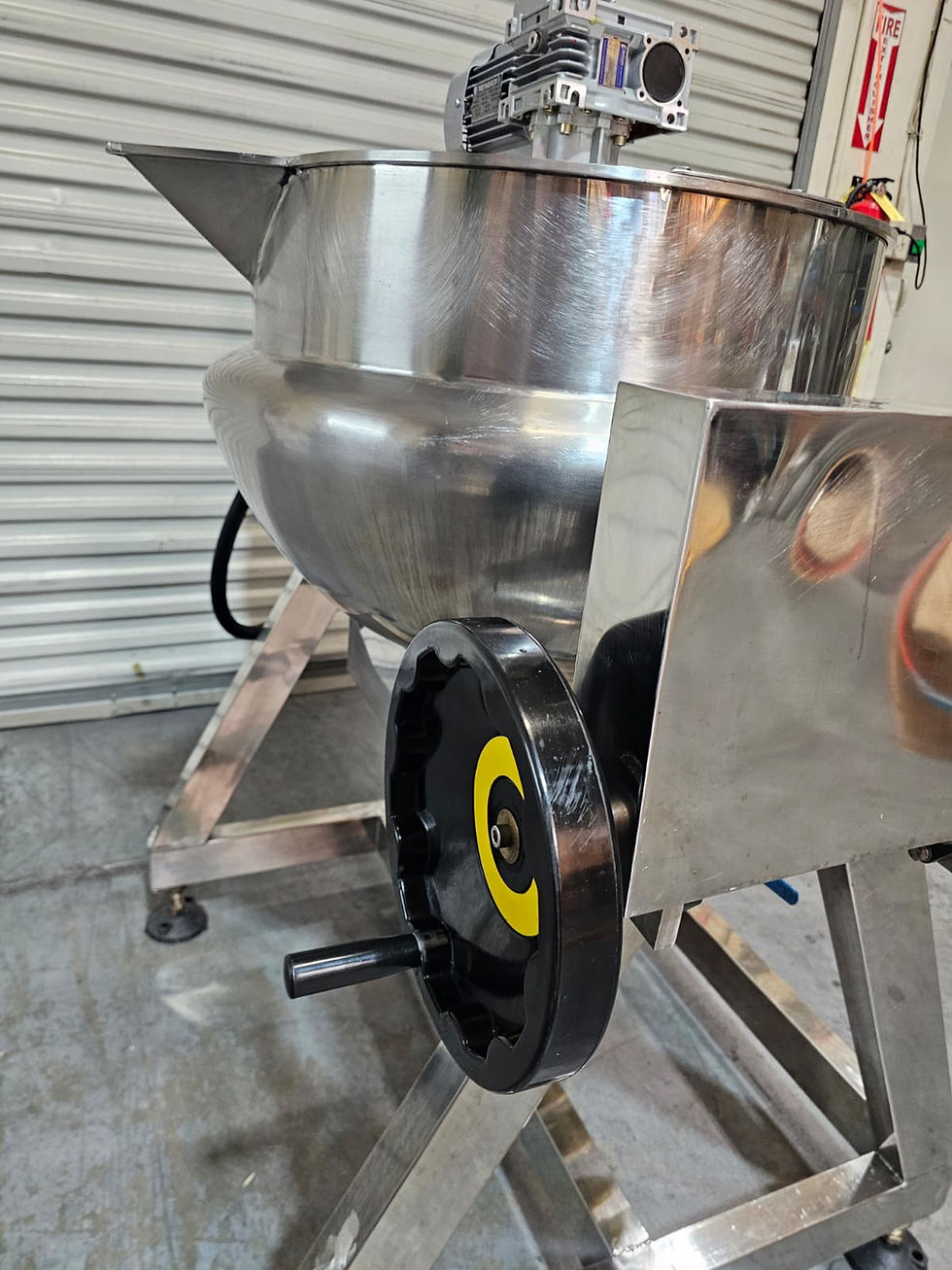

Discharge Mechanism: Manual mechanical tilting system via side handwheel with rotating crank
Electric Motor: Industrial Three-Phase Asynchronous Motor
Motor Specifications: Model YE2-80M1-4 | Power: 0.55 kW (3/4 HP) | 1700 RPM | 220V | 60 Hz | 2.76 A | IP54 Protection Rating
Gear Reducer: Right-angle worm gear speed reducer (Shanghai Pinion Transmission Equipment)
Gearbox Specifications: Model NMRV050-F11-80B14 | Reduction Ratio ($$$): 50:1 (Reduces the 1700 motor RPM to approx. 34 RPM for high-torque agitation)
Agitation System: Stainless steel mixing blades equipped with replaceable food-grade white Teflon wall scrapers
Control Panel Enclosure: Stainless steel cabinet with digital temperature controller (pyrometer), start/stop selector switches, industrial indicator pilot lights, and an emergency stop (E-Stop) mushroom button
Support Frame: Heavy-duty tubular stainless steel stand with adjustable, slip-resistant leveling feet
